Dettagli del prodotto
Luogo di origine: YIXING
Marca: HUADING
Certificazione: CE
Numero di modello: LW
Termini di pagamento e di spedizione
Quantità di ordine minimo: 1 set
Prezzo: 20000-200000 USD/SET
Imballaggi particolari: Pacchetto di navigazione standard
Tempi di consegna: 90 giorni lavorativi
Termini di pagamento: L/C, D/A, D/P, T/T
Applicazione: |
Disidratazione dei fanghi |
Capacità: |
1-100 m3/h |
Assistenza post-garanzia: |
Parti di ricambio |
Potenza motore: |
4-90 kW |
Operazione: |
Automatico |
Punti di forza: |
Alta produttività |
PLC: |
Siemens |
Energia: |
Guida a doppio motore |
Frequenza: |
ABB |
Portamento: |
SKF/FAG |
Applicazione: |
Disidratazione dei fanghi |
Capacità: |
1-100 m3/h |
Assistenza post-garanzia: |
Parti di ricambio |
Potenza motore: |
4-90 kW |
Operazione: |
Automatico |
Punti di forza: |
Alta produttività |
PLC: |
Siemens |
Energia: |
Guida a doppio motore |
Frequenza: |
ABB |
Portamento: |
SKF/FAG |
Attribute | Value |
---|---|
Application | Sludge dewatering |
Capacity | 1-100 m³/h |
After Warranty Service | Spare parts |
Motor power | 4-90 KW |
Operation | Automatic |
Key selling points | High Productivity |
PLC | SIEMENS |
Energy | Double motor driving |
Frequency | ABB |
Bearing | SKF/FAG |
What is the primary purpose of decanting?
Decanting enhances the wine's aromas and flavor. The pouring of wine from the bottle into a decanter introduces oxygen to the wine, allowing it to "breathe." The addition of air to the equation allows the wine's aromas to fully express themselves and the wine's unique flavors to knit and come forward.
The bowl and screw make high-speed rotation with a certain differential speed between them. The materials enter the bowl from the feed tube. Under centrifugal force, the liquid of higher specific weight accumulates on the inner walls of the bowl and is discharged through the centripetal pump or overflow plate. The liquids of lower specific weight form an inner liquid ring, stick to the surfaces of heavy liquids, and are discharged from the overflow channel. The spiral material pusher continuously pushes solids to the taper end of the bowl where they are discharged from the residue outlet after going through the drying area.

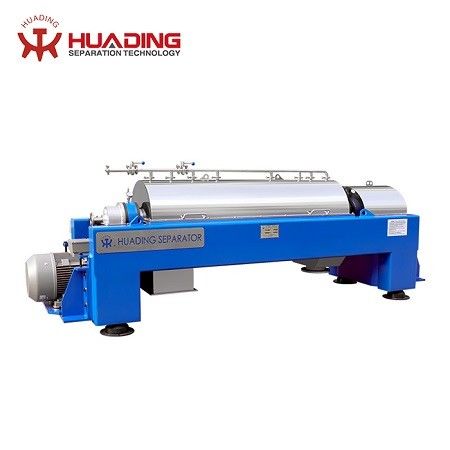

The LW series 2-phase sedimentation decanter centrifuge is a horizontal, continuously working and continuously spiral discharging sedimentation centrifuge, ideal for sewage sludge dewatering and thickening.
Product | 2-phase decanter centrifuge |
---|---|
Application | Plant extraction |
Capacity | 1-100 M³/H |
Material | Stainless steel |
Control and operation | PLC control, automatic, touch screen operation |
Discharging | Continuous and automatic |
Motor | Double motor driving |
Motor power | 4-110KW |
Huading Separator has been at the forefront of centrifugal separation technology for more than 60 years. Established in 1954, we are the leader in mechanical separating technology in China. Our machines serve diverse industries including beverage, dairy, oil recovery, chemicals, pharmaceuticals, biotechnology, starch technology, marine engineering, energy, oil fields, and water treatment.
Huading Machinery is a manufacturer of separators and decanters since 1954, with over 60 years of experience in centrifugal separation equipment design and manufacturing. Our products serve food, beverage, pharmaceutical, chemical, marine, oilfield, energy, mining, mechanical engineering, and wastewater treatment industries.
As a professional manufacturer with 60+ years experience, we use advanced equipment and skilled workers. Each processing procedure undergoes strict inspection with test reports. We also accept customer FAT testing.
One year after machine arrival at customer site.
Our after-sales service includes technician dispatch for installation, commissioning, and training, or online guidance via video.
Generally T/T or L/C at sight.
